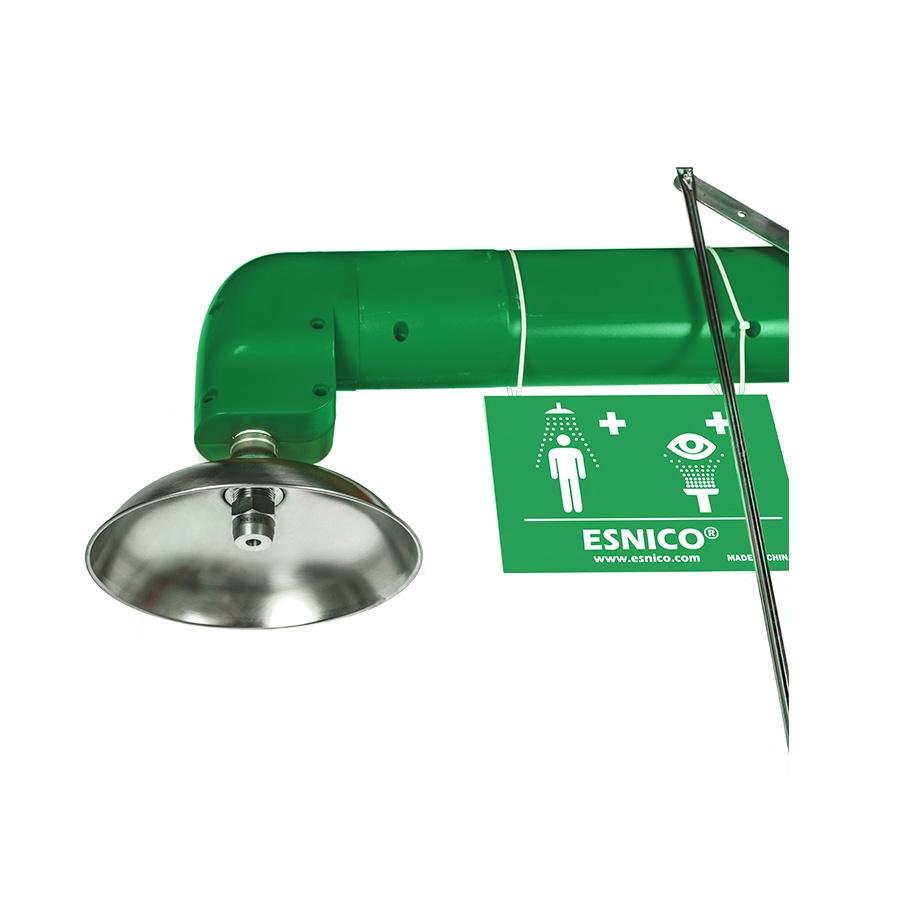

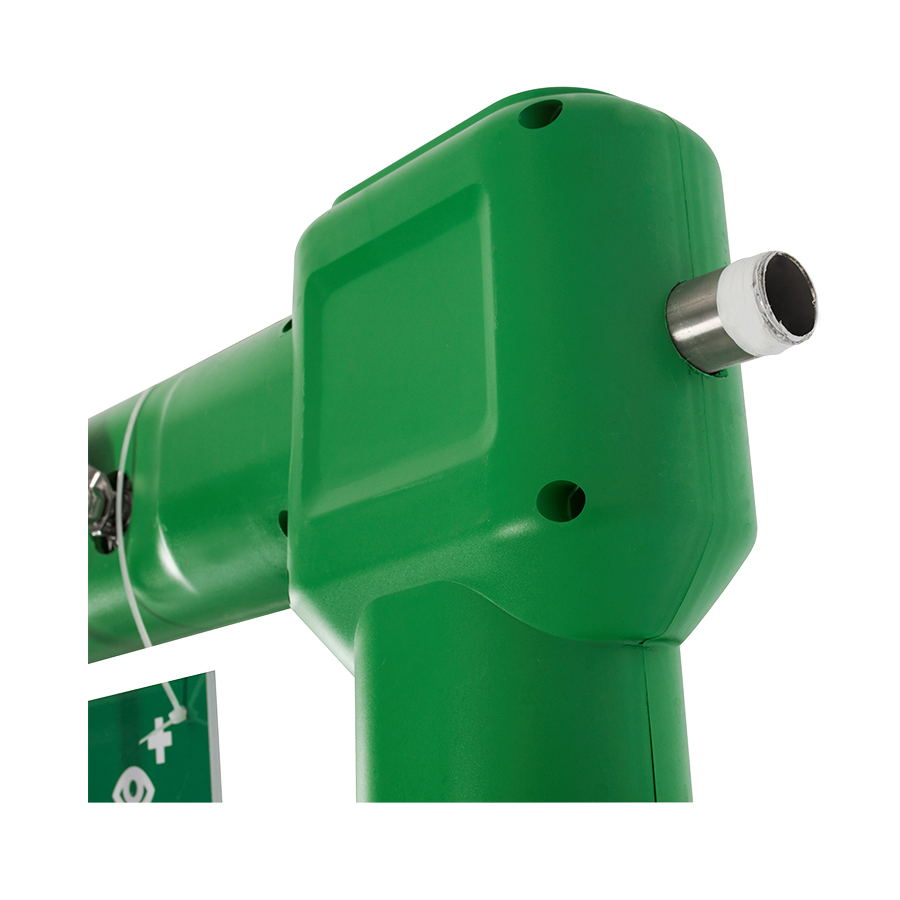

Heat Traced Emergency Shower and Eyewash, Stainless Steel with ABS Shell - ESW010HT
Heat Traced Emergency Shower and Eyewash, Stainless Steel with ABS Shell - ESW010HT

Heat Traced Emergency Shower and Eyewash, Stainless Steel with ABS Shell - ESW010HT

Model No:ESW010HT

Freeze resistance equipment adopts electric heating cable

ABS shell with anti-corrosion and weather resistance feature

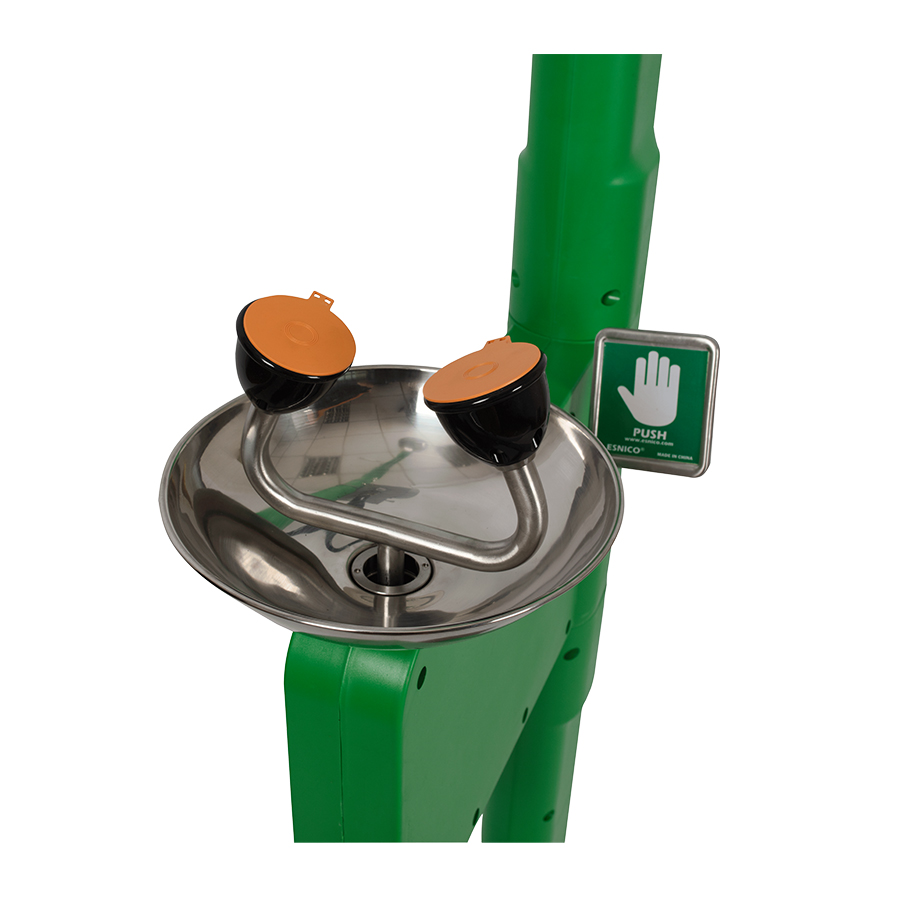

Dual soft-flow nozzles for gentle and thorough rinsing of the eyes

Pull rod (shower) and push paddle (eyewash) for instant operation

Suitable for labs, industrial plants, construction sites, and more

ANSI Z358.1-2014 and OSHA 29 CFR 1910.151 compliance

Details
Specification
Request a Catalog
FAQ
Product Details

Emergency eyewash and shower is an emergency device that temporarily relieves any toxic or harmful substances, such as corrosive chemical liquids, from incurring further damage to a physical body in case the hazardous substance spills to the body, face or eyes of workers, and makes time for professional medical care.


Esnico eyewash series comply with standard of ANSI Z358.1-2014, and requirements of OSHA. In OSHA 29 CFR 1910.151, it provides that in any environment where human eyes or body may be exposed to any harmful or corrosive material, proper equipment shall be placed at the working area for showering of eyes and body in emergencies.


Heat traced emergency shower and eyewash station is a kind of freeze resistance equipment adopts electric heating cable with automatic temperature adjustment for thermal insulation. The outermost layer is ABS shell with anti-corrosion, weather resistance and flame-retardant feature.


Specification
Model No.ESW010HT
TypeCombination Unit
StandardANSI   Z358.1-2014, EN15154, AS 4775-2007, OSHA 29
MaterialStainless Steel 304
Eyewash Flow Rate≥11.4L/min
Shower Flow Rate≥75.7L/min
Inlet Size1-1/4’’
Outlet Size1-1/4’’
Minimum Ambient Temperature5°C/41°F
Maximum Ambient Temperature35°C/95°F


Request a Catalog
FAQ

What is an emergency shower and eyewash station used for?

Emergency showers and eyewash stations are designed to provide immediate decontamination to employees exposed to hazardous chemicals, dust, or debris. They help flush contaminants from the skin, eyes, or entire body, reducing injury severity.

What are the types of emergency showers and eyewash stations available?

-Plumbed Units: Connected to a permanent water supply.
-Self-Contained (Portable) Units: Feature a built-in tank for remote or temporary use.
-Combination Units: Offer both full-body shower and eyewash capabilities.
-Wall-Mounted or Pedestal Eyewash Stations: Compact options for smaller spaces.
-Freeze-Protected or Heated Units: Designed for cold environments.

What standards do these units need to comply with?

Emergency showers and eyewash stations must comply with ANSI Z358.1-2014 and OSHA regulations. These standards specify flow rates, activation requirements, and other critical safety criteria.

How do I activate the unit?

-Shower: Pull down the activation rod to release water.
-Eyewash: Push the paddle or lever to start the flow of water.

How often should the units be tested?

According to ANSI standards, units should be:
-Activated Weekly: To ensure proper operation and flush out stagnant water.
-Inspected Annually: For a complete check of flow rates, water temperature, and overall functionality.

Where should emergency showers and eyewash stations be installed?

They should be installed:
-Within a 10-second walking distance from hazardous areas.
-On the same level as the hazard (no stairs or obstacles).
-In a well-lit and clearly marked location.

How long should an affected individual use the shower or eyewash?

The ANSI standard recommends a minimum of 15 minutes of continuous flushing to ensure effective decontamination.

How to customize an eyewash station?

Please share your specific requirements with us, and our technical team will design and customize the eyewash station to meet your needs.

Where can I get more information or purchase a unit?

Contact us directly or visit our website for product details, pricing, and expert advice tailored to your workplace needs.
